MAE 148 Fall 2024 Team 6 Final Project

Assembled Car

Table of Contents


Team Members


Overview

We want to create a self parallel-parking robot that:

  1. Follows a centerline road path (using a specific color).
  2. With one input, can park in 3 different desired parking spots.
  3. Continues traveling back and forth along the centerline until this input is given.

The robot also performs U-turns at the ends of the centerline to remain on the path.


Software

  • OpenCV: Used to recognize lines while driving and detect specific colored parking spots.
  • Custom Motion Control: Predefined motions for entering and exiting parking spots.
  • VESC: Used to control RPM (speed) and servo values for precise movements.

We trained parking maneuver motions to both enter and exit the parking spot. RPM and Servo values were tracked and normalized to ensure consistency.


Hardware

The robot project includes:

  • Traxxas 1/10 scale chassis, servo, and tires
  • Jetson Nano as our SBC
  • OAK-D Lite camera (Fixed-Focus)
  • VESC motor controller (which also controlled our steering servo)
  • MATEKSYS Servo PDB
  • Quectel GNSS/SPG module and board
  • LD06 LiDar
  • DC-DC Converter
  • Anti-Spark Switch with power switch
  • XeRun 3660 G2 sensored motor
  • Logitech G F710 Wireless Gamepad
  • 4S Lipo Battery

Hardware Table

All custom hardware/mounting designs were made on CAD using Fusion360

Description Image
Assembled CAD Model Assembled CAD Model
Magnetic Jetson Case Magnetic Jetson Case
LD06 Lidar Mount LD06 Lidar Mount
OAKd-Lite Mount OAKd-Lite Mount
Mounting Plate Mounting Plate
Mounting Plate Front Support Mounting Plate Front Support
Rear Hinge Mount Rear Hinge Mount
Swivel Hinges Swivel Hinges
USB Hub Mount USB Hub Mount
GPS: GNSS Receiver and Power Switch Holder GPS GNSS Receiver and Power Switch Holder
VESC DCDC Converter and Anti-Spark Holder VESC DCDC Converter and Anti-Spark Holder
Assembled VESC Case Assembled VESC Case
Assembled Car (old springs) Assembled Car (old springs2)

Wiring Diagram

Team6_WiringDiagram

Assembled Robot

Finished Robot Underside of Robot

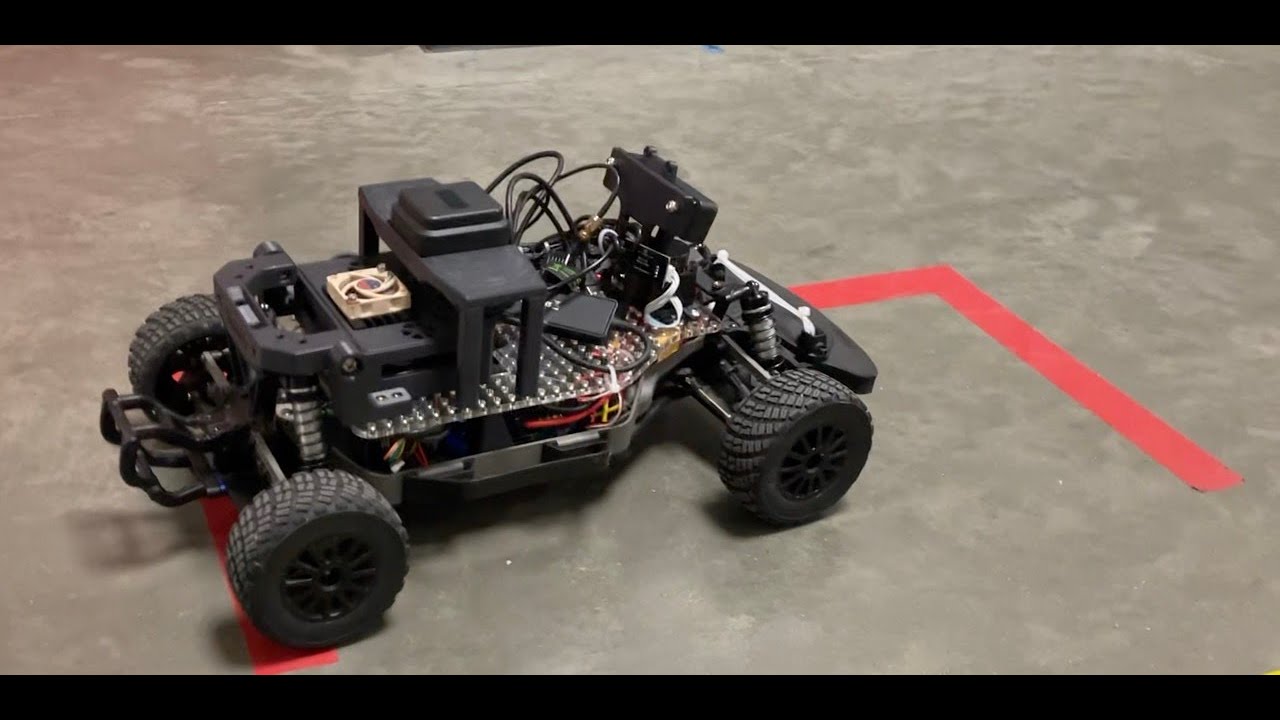

Final Project Demo

Watch the video


Results

The robot was able to:

  • Successfully travel back and forth along the centerline.
  • Perform U-turns at the ends of the line.
  • Correctly identify each parking spot using color detection and perform parking maneuvers.

Known Issues:

  • The robot did not consistently fully enter the parking spots.
  • The U-turn radius was slightly larger than desired.

Program Structure

The program is modular and consists of:

  1. Main Script:
    • parallel_park.py – the primary entry point that runs the robot program.
  2. Line Following:
    • perform_line_following.py – controls line following and integrates parking logic.
  3. Color Detection:
    • color_detection.py – detects colored markers in specific regions of the camera frame.
  4. Maneuver Scripts:
    • Found in the motions/ directory (e.g., parking, U-turns).
  5. Utilities:
    • Scripts for steering calculations, cropping frames, logging, and other helper functions.

File Descriptions

Main Script

  • parallel_park.py
    The entry point for the program. It:
    • Initializes the camera input.
    • Starts the line-following process.
    • Integrates color detection to trigger parking or maneuver actions.

Core Scripts

  • perform_line_following.py

    • Handles the line-following logic by processing the camera feed and controlling robot steering.
    • Detects colors using color_detection.py to determine when to pause or perform parking maneuvers.
    • Executes motion scripts (e.g., U-turns, parking) when triggered.
  • color_detection.py

    • Detects colors in specific regions (top, middle, and bottom rows) of the camera frame.
    • Key functions:
      • detect_color_in_boxes: Checks for color in specific grid regions.
      • is_color_present_in_row: Determines if a color exists in a specific row.
  • calculate_steering_offset.py

    • Computes the steering offset based on the position of the detected line relative to the center of the frame.
  • get_line_position.py

    • Extracts the horizontal position of the detected line for steering adjustments.
  • filter_yellow_line.py

    • Filters yellow lines from the camera feed using HSV thresholds.
  • crop_frame.py

    • Crops the camera input to focus on relevant regions for line detection.
  • detect_endpoint.py

    • Detects endpoints in the line and triggers U-turn execution.

Motions Directory

The motions/ directory contains scripts for specific robot behaviors:

  • U_Turn.py: Executes a U-turn when an endpoint is detected.
  • Left_Parking.py and Right_Parking.py: Handles left and right parking maneuvers.
  • Left_Exit.py and Right_Exit.py: Manages exiting maneuvers after parking.

Utilities and Configuration

  • control_vals.py
    Stores control constants for:

    • Steering offsets
    • RPM values
    • Thresholds for detection logic.
  • logger_config.py
    Configures logging for debugging and program execution tracking.

  • initialize_vesc.py
    Initializes and configures the VESC motor controller.


Testing and Adjustments

  • test_color_detection.py
    A testing script to validate color detection logic. It displays debug windows for:

    • Regions where color is detected.
    • Adjustments to grid positions.
  • adjust_centerline.py, adjust_spot_bars.py, and adjust_yellow_line_crop.py
    Scripts to fine-tune:

    • Line detection accuracy.
    • Grid positioning for color detection.
  • filter_adj_test.py and filter_yellow_test.py
    Scripts to test and adjust HSV thresholds for line and color detection.


Logs and Outputs

  • Logs:

    • line_following.log: Logs details during line-following execution.
    • main.log: General execution log.
    • test_color_detection.log: Logs for testing color detection logic.
  • Recordings:
    The recordings/ directory stores outputs such as snapshots or test video recordings.


How to Run the Program

  1. Ensure all dependencies are installed:
    pip3 install depthai opencv-python numpy
  2. Run the program
    python3 parallel_park.py
