Queensland Government Form.io custom component library

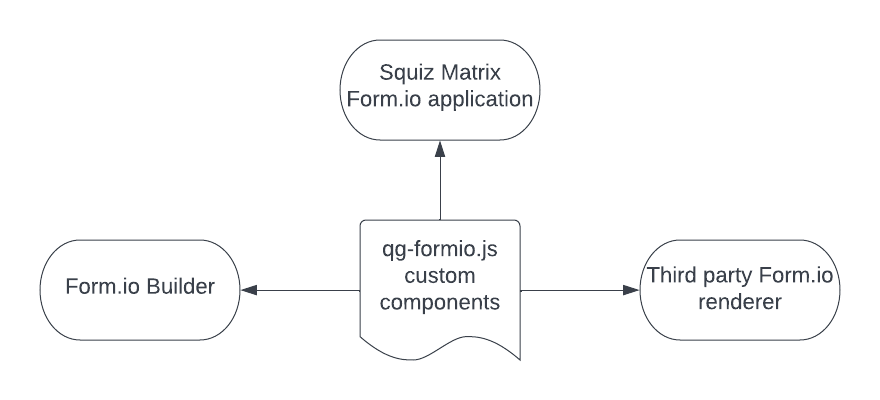

This repository provides a bundled JS custom component library to form.io builder / form.io renderer / Squiz Matrix form application.

share diagram

Storybook of this project: https://qld-gov-au.github.io/formio/?path=/docs/welcome--page

Goals

Following are the goals of this repository.

Primary

Goal Description Solution
JS Bundling Bundles a single JS file used in Form.io builder project settings, which also can be attached by any renderer applications Webpack + Babel
Support IE11 es5+ JS will be used in dev environment, but needs to be compiled in the bundled file Babel polyfill
CI/CD Needs a automatic pipeline for doc and CDN deployment Github Actions
CDN deployment Bundled JS file needs to be delivered by CDN Separate Bitbucket repository + Bamboo

Secondary

Goal Description Solution
Development environment for local development Storybook
Documentation deployment for hosting the doc generated by Storybook Github Page
Testable provides testing infrastructure for local testing and CI/CD Jest + Testing Library
Code quality for development consistency and reducing merge conflicts due to code format esLint + Prettier

Optional

Goal Description Solution
Visual testing Optional because this project focus more on functionality and doesn't involve style modification Chromatic
Typescript improve code quality but require more development resources and developer skill Typescript

Development

Storybook is the main development environment in this repository.

Local development

  • Create a feature branch from main.
  • Before installing, make sure you are linking to nexus registry in your ~/.npmrc, ie. have these 2 lines in the file, please consult [email protected] for the auth code.
registry=https://nexus.tools.services.qld.gov.au/nexus/repository/npm_all/
_auth="xxxxxx"
  • Install packages with npm install.
  • Start development environment with npm run storybook.
  • Create / Modify components in src/components.
  • Update src/components/index.js for new component.
  • Lint and test with npm run validate.
  • Push your branch and create pull request to merge to main branch.

Remote testing in Squiz Matrix

There are 2 approaches to debug your feature branch in Squiz Matrix.

Approach 1: Deploy to CDN as a beta release

  • Validate your feature branch with npm run validate.
  • Review the latest tag number by git tag -l, and decide a new version number.
  • Create a tag in https://github.com/qld-gov-au/formio, by running git tag -a vx.x.x-beta00x -m "your message" (eg. v1.0.4-beta001), with the new version number you just updated.
  • Push the tag to remote by git push origin vx.x.x-beta00x, with the new version number you just updated.
  • If your branch is valid and Github actions is executed, your branch will be deployed to CDN DEV environment after few minutes. You can check the status of deployment in https://servicesmadesimpler.govnet.qld.gov.au/bamboo/browse/QSA-FOR/deployments.
  • In the Squiz Matrix Formio template, you could test your change by select dev in Script environment, and leave Script version to default or enter the version you just created, eg. v1/v1.0.4-beta001. Please refer to https://www.qld.gov.au/_resources/matrix-documentation/components/form.io-forms-v2 for instruction of using the Formio template in Squiz Matrix.
  • If you've updated your feature branch and want to deploy to CDN and test again, you could remove the existing tag with git tag -d vx.x.x-beta00x (to remove the local tag) and git push --delete origin vx.x.x-beta00x (to remove the remote tag), and re-create the tag again. You may run into building error in Github action, you just need to re-run the failed task in this case.

Approach 2: Using Gitbridge

Deployment

Push any branches in https://github.com/qld-gov-au/formio will create a co-responding branch in https://github.com/qld-gov-au/formio-qld. Then you can use gitBridge to test the modules in Squiz Matrix.

Release to CDN

Usage

You can consume this library either in Form.io Builder or Form.io Renderer.

Form.io platform builder

To use custom components in the Form.io platform builder, please go to the Project stage settings and update the Custom javascript URL with the CDN URL of this library:

https://static.qgov.net.au/formio-qld/v2/v2.x.x-latest/formio-qld.min.js

and update the Custom CSS property with

https://static.qgov.net.au/formio-qld/v2/v2.x.x-latest/formio-qld.min.css

share diagram

Form.io JS renderer or builder

To use custom components in the Form.io JS renderer, please include the script AFTER the formio script. Pleaser refer to Form.io doc for how to initiate your form application in a HTML page.

<script src="https://static.qgov.net.au/formio-qld/v2/v2.x.x-latest/formio.full.min.js"></script>
...
<script src="https://static.qgov.net.au/formio-qld/v2/v2.x.x-latest/formio-qld.min.js"></script>
<link
  rel="stylesheet"
  href="https://static.qgov.net.au/formio-qld/v2/v2.x.x-latest/formio-qld.min.css"
/>

Squiz Matrix

To use this custom component library in QG Squiz Matrix, please refer to the following guides:

Formio scripts versioning

The scripts files in the lib folder will be copied and hosted in the CDN, which are coming from these libraries:

We will need to sync the version of these files with the version of the QG form.io platform https://api.forms.platforms.qld.gov.au/#/.

At the bottom of the page in https://api.forms.platforms.qld.gov.au/#/, you can get the server version, eg. Application: 7.3.0, Renderer: 4.14.0

Based on the server version 7.3.0, you could find the required version of all the dependency libraries in https://github.com/formio/enterprise-release/blob/master/API-Server-Change-Log.md#api-server-version-730.

eg. [email protected] [email protected]

Then you could copy the corresponding script files to the lib folder.

Another way to copy the correct version script is:

  • create a new feature branch from main.
  • update the formiojs and @formio/premium version number in package.json.
  • run npm i
  • in node_modules/@formio/premium/dist copy and replace the files that already in lib folder.
  • in node_modules/formiojs/dist copy and replace the files that already in lib folder.
  • commit and push and follow the steps to create a release.

Nicer way

  • update .github/workspace/formiojs and .github/workspace/prem package.json with correct locked version
  • run mvn clean install (or npm install && npm run copy-all )
  • commit and push and follow the steps to create a release.

Auto updating scripts

Github actions has been setup for this repo to fetch the latest versions of scripts from formiojs and premium, automatic creates PR to merge the latest script to the main branch.

At the mean time we need to sync the version with QG form.io platform, we could merge these PRs if the version is the same as the form.io server otherwise we'll have to ignore them.

Theming

Although we don't need to support multiple themes at the moment for formio, the multi-theme architecture has been setup in this repository.

Currently there are 2 themes in this repository:

  • SWE: default theme, will be bundled into dist/formio-qld.min.css and dist/formio-qld-swe.min.css (they are identical).
  • Design System: experimental theme, will be bundled into dist/formio-qld-ds.min.css.

You could preview each of the theme in storybook with the theming button in storybook toolbar.

To modify a theme for a formio component, simply create a scss file with theme id in the file extension in the component folder. ie. src/components/Radio/sass/radio.swe.scss. Then import the file in src/sass/formio.form.swe.scss.

Please refer to src/components/Radio/sass for how to customise theming for any formio components.

Adding a theme

  • Duplicate src/sass/formio.form.swe.scss with a new theme id.
  • Modify src/sass/formio.form.stories.scss add the new theme id, for adding the theme in storybook environment.
  • Modify .storybook/preview.js add the new theme in parameters, for adding the theme in storybook environment.
  • Modify webpack.config.js add a new entry point that points to the new theme file, for adding the theme to the build.

Changing the default theme

Modify ./webpack.config.js, change the formio-qld entry point to point to the theme you like.

TODO on theming

  • Move formio component style from SWE library to this repository.
  • Add Visual testing (eg. Chromatic) to CI/CD pipeline.

Folder structure

src/components

Custom Formio components. Please refer to src/components/BoilerplateButton if you need a boilerplate for developing custom component.

src/helpers

Helper modules for integrate Formio into Squiz Matrix/consumer application.

src/examples

Sample usage of Formio implementation in any applications.

src/sass

Entry points of css theme

lib

Third party library files that going to be served by the CDN.

builder

Backup/archived code snippet to be used in Formio platform.

Alternative way to build/run

To not require install npm/node on your system, you can use the maven bootstrap method.

Install Java8+, Install Maven.

To run lint, tests, compile and build dist folder.

mvn clean install

to run storybook dev mode

mvn com.github.eirslett:frontend-maven-plugin:npm@storybook

Coding practice

Functional programming pattern VS OOP pattern

The custom component library under src/components is using OOP (Object Oriented Programming) pattern. As we are extending formio.js components which are already written with this pattern.

Other part of the project is using FP (Functional programming) pattern instead of OOP (Object Oriented Programming) pattern.

https://tsh.io/blog/7-reasons-to-use-functional-programming-on-frontend-1-2/ https://medium.com/@bananicabananica/functional-programming-on-frontend-86d5b5fcf5a8 https://medium.com/@shaistha24/functional-programming-vs-object-oriented-programming-oop-which-is-better-82172e53a526

IDE

Vscode is recommended for this project, with the following extensions:

  • dbaeumer.vscode-eslint
  • esbenp.prettier-vscode
  • silvenon.mdx

With the default Vscode settings in the repo, you'll be able to:

  • Auto lint on save
  • Real time linting feedback
  • Hint and quick fix for lint error
