Mi Connector

Connector for Xiaomi devices with SmartThings

Simplifies the setup of Xiaomi devices with SmartThings.
If Mi Connector is installed, virtual devices are registered automatically by the Mi Connector SmartApp.
You don't have to do anything to add Xiaomi devices in SmartThings IDE.

Please see the prerequisites needed for this connector to work properly.

Hubitat? Use the following branch: https://github.com/fison67/mi_connector/tree/hubitat

No more used a arm image.
Just use a fison67/mi-connector image.

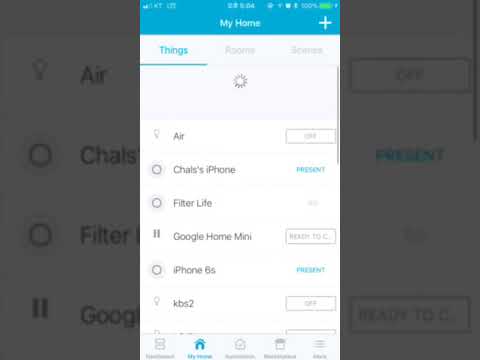

Example Video

Donation

If this project helps you, you can give me a cup of coffee

Release Notes

Version: 0.0.6

Added support devices.

Version: 0.0.5

Added support devices.

Version: 0.0.4

Added a function to add a device by db file.
Added support devices.

Version: 0.0.3

Added a graph in DTH & Web. [ Important!!! You must install a DB. ]
Added support devices.
Added function [find childs] in a gateway DTH.
Fixed bug when Zigbee device count is over 25, network error occurred

More screenshots: https://github.com/fison67/mi_connector/blob/master/imgs/v.0.0.3/README.md

Version: 0.0.2

Added Log page. You can check for an invalid token or see if Mi Connector cannot get a token.
Fixed bugs.
Added refresh feature.
Added support devices.

Documentation

Management Web Desktop Version

Management Web Mobile Version

DTH Example

Supported Devices

Wi-Fi Devices

Type	Model	Tested	Beta
Xiaomi Air Purifier	zhimi.airpurifier.m1	O
	zhimi.airpurifier.m2	X
	zhimi.airpurifier.v1	X
	zhimi.airpurifier.v2	X
	zhimi.airpurifier.v3	X
	zhimi.airpurifier.v6	X
	zhimi.airpurifier.v7	X
	zhimi.airpurifier.mc1	X
	zhimi.airpurifier.ma2	X
	zhimi.airpurifier.ma4	O
	zhimi.airpurifier.sa2	△
	zhimi.airpurifier.mb3	△
Xiaomi Air Fresh	zhimi.airfresh.va2	X
Xiaomi Humidifier	zhimi.humidifier.v1	X
	zhimi.humidifier.ca1	O
	zhimi.humidifier.ca4	X
	zhimi.humidifier.cb1	X
	zhimi.humidifier.cb2	X
	shuii.humidifier.jsq001	O
	deerma.humidifier.mjjsq	O
	deerma.humidifier.jsq	X
	deerma.humidifier.jsq1	X
Xiaomi Dehumidifier	nwt.derh.wdh318efw1	X
Xiaomi Vacuum	rockrobo.vacuum.v1	O
	roborock.vacuum.c1	X
	roborock.vacuum.s5	X
	roborock.vacuum.s6	X
	roborock.vacuum.s5e	X
	roborock.vacuum.m1s	X
	roborock.vacuum.e2	X
	roborock.vacuum.a10	X
	viomi.vacuum.v6	X
	viomi.vacuum.v7	X
	kxf321.mop.mo001	X
Xiaomi Power Socket	chuangmi.plug.v1	X
	chuangmi.plug.v2	X
	chuangmi.plug.v3	O	O
	chuangmi.plug.m1	O
Xiaomi Power Strip	qmi.powerstrip.v1	X
	zimi.powerstrip.v2	O
Xiaomi Air Monitor	zhimi.airmonitor.v1	O
	cgllc.airmonitor.b1	O	O
	cgllc.airmonitor.s1	O	O
Xiaomi Gateway	lumi.gateway.v2	X
	lumi.gateway.v3	O
Xiaomi AC Partner	lumi.acpartner.v3	X
Xiaomi Fan	zhimi.fan.v2	O
	zhimi.fan.v2	X
	zhimi.fan.v3	O
	zhimi.fan.sa1	X
	zhimi.fan.za1	O
	zhimi.fan.za3	X
	zhimi.fan.za4	X
	zhimi.fan.za5	X
	air.fan.ca23ad9	O
	dmaker.fan.p5	X
	dmaker.fan.p8	X
	dmaker.fan.p9	X
	dmaker.fan.p10	X
	dmaker.fan.p11	X
Yeelight Mono	yeelink.light.lamp1	X
	yeelink.light.lamp2	O
	yeelink.light.lamp3	O
	yeelink.light.mono1	O
	yeelink.light.ct2	O
Yeelight Color	yeelink.light.color1	O
	yeelink.light.color2	O
	yeelink.light.color3	O
	yeelink.light.color4	O
	yeelink.light.color5	O
	yeelink.light.strip1	O
	yeelink.light.strip2	O
	yeelink.light.strip3	O
	yeelink.light.strip4	O
	yeelink.light.strip5	O
	yeelink.light.strip6	O
Bedside Lamp	yeelink.light.bslamp1	O
	yeelink.light.bslamp2	X	O
Yeelight Ceiling	yeelink.light.ceiling1	O
	yeelink.light.ceiling2	O
	yeelink.light.ceiling3	O
	yeelink.light.ceiling4	O
	yeelink.light.ceiling5	O
	yeelink.light.ceiling6	O
	yeelink.light.ceiling7	△
	yeelink.light.ceiling8	△
	yeelink.light.ceiling9	△
	yeelink.light.ceiling13	△
	yeelink.light.ceiling14	△
	yeelink.light.ceiling15	△
	yeelink.light.ceiling16	△
	yeelink.light.ceiling17	△
	yeelink.light.ceiling18	△
	yeelink.light.ceiling19	△
	yeelink.light.ceiling20	△
	yeelink.light.ceil26	△
Philips Ceiling	philips.light.ceiling	O
	philips.light.zyceiling	O
Philips Downlight	philips.light.downlight	O
Philips Bedside Lamp	philips.light.moonlight	O
Philips Light	philips.light.sread1	△
	philips.light.bulb	△
Xiaomi IR Remote	chuangmi.ir.v2	△
	chuangmi.remote.h102a03	△	O
	chuangmi.remote.v2	△	O
Xiaomi Heater	zhimi.heater.za1	O
	zhimi.heater.za2	X
	zhimi.heater.mc2	X
	zhimi.elecheater.ma1	X

Zigbee Devices

Type	Model	Tested
Xiaomi Motion Sensor	lumi.motion	X
	lumi.motion.aq2	O
Xiaomi Door/Window Sensor	lumi.magnet	X
	lumi.magnet.aq2	O
Xiaomi Weather Sensor	lumi.weather	O
	lumi.sensor_ht	O
Xiaomi Power Socket	lumi.plug	O
Xiaomi Button	lumi.switch	O
	lumi.switch.v2	O
	lumi.86sw1	O
	lumi.86sw2	O
Xiaomi Cube	lumi.cube	O
Xiaomi Wall Switch	lumi.ctrl_neutral1	O
	lumi.ctrl_neutral2	O
Xiaomi Relay	lumi.relay	O
Xiaomi Smoke Sensor	lumi.smoke	O
Xiaomi Gas Sensor	lumi.gas	O
Xiaomi Water Sensor	lumi.water	O
Xiaomi Curtain Motor	lumi.curtain	O
Xiaomi Vibration Sensor	lumi.vibration	O

Bluetooth Devices

Type	Model	Tested
Xiaomi Flora	ble.flora	△
Xiaomi Flora Pot	ble.floraPot	△
Xiaomi Temp-Humid Sensor	ble.mitemperature	△
Xiaomi E-Ink Temp-Humid Sensor	ble.einktemperature	△

Installation

Prerequisites

SmartThings account
Local server (Synology NAS, Raspberry Pi, Linux Server) with Docker installed
Xiaomi Gateway (Only needed for Zigbee devices)
Built-in bluetooth or dongle available on local server (Only needed for Bluetooth devices)

Docker Versions

Stable Versions

Docker tag
fison67/mi-connector:latest
~~fison67/mi-connector-arm:latest~~

Install Mi Connector API Server

Raspberry Pi

Docker must be installed and running before continuing the installation.

sudo mkdir /docker
sudo mkdir /docker/mi-connector
sudo chown -R pi:pi /docker
docker pull fison67/mi-connector:latest
docker run -d --restart=always -v /docker/mi-connector:/config --name=mi-connector --net=host fison67/mi-connector:latest

Synology NAS

Docker must be installed and running before continuing the installation.

See the manual for details

1. Open Docker app in Synology Web GUI
2. Select the Registry tab in the left menu
3. Search for "fison67"
4. Select and download the "fison67/mi-connector" image (choose the "latest" tag for the stable version or see the Docker Versions section above for other versions/tags)
5. Select the Image tab in the left menu and wait for the image to fully download
6. Select the downloaded image and click on the Launch button
7. Give the Container a sensible name (e.g. "mi-connector")
8. Click on Advanced Settings
9. Check the "auto-restart" checkbox in the Advanced Settings tab
10. Click on Add Folder in the Volume tab and create a new folder (e.g. /docker/mi-connector) for the configuration files. Fill in "/config" in the Mount path field.
11.  Check the "Use the same network as Docker Host" checkbox in the Network tab
12. Click on Apply => Next => Apply

Linux x86 x64

Docker must be installed and running before continuing the installation.

sudo mkdir /docker
sudo mkdir /docker/mi-connector
docker pull fison67/mi-connector:latest
docker run -d --restart=always -v /docker/mi-connector:/config --name=mi-connector --net=host fison67/mi-connector:latest

Install MySQL database

Raspberry Pi

Docker must be installed and running before continuing the installation.

docker pull jsurf/rpi-mariadb
docker run -d --name mariadb -e MYSQL_ROOT_PASSWORD=password1234 -e TZ=Asia/Seoul -p 33006:3306 -d jsurf/rpi-mariadb

Synology NAS

Docker must be installed and running before continuing the installation.

1. Open Docker app in Synology Web GUI
2. Select the Registry tab in the left menu
3. Search for "mariadb"
4. Select and download the "mariadb" image (choose the "latest" tag)
5. Select the Image tab in the left menu and wait for the image to fully download
6. Select the downloaded image and click on the Launch button
7. Give the Container a sensible name (e.g. "mariadb")
8. Click on Advanced Settings
9. Check the "auto-restart" checkbox in the Advanced Settings tab
10. Check the "Use the same network as Docker Host" checkbox in the Network tab
11. Add the following variables in the Environment tab:
    variable: MYSQL_ROOT_PASSWORD, Value: password1234
    variable: TZ, Value: Asia/Seoul
12. Click on Apply => Next => Apply

With the settings above the default DB port is 3306 and must be used during the Mi Connector configuration.

Linux x86 x64

Docker must be installed and running before continuing the installation.

docker pull mariadb
docker run -d --name mariadb -e MYSQL_ROOT_PASSWORD=password1234 -e TZ=Asia/Seoul -p 33006:3306 -d mariadb

Mi Connector configuration

1. Open Mi Connector web settings page (http://X.X.X.X:30000/settings)
2. Fill in the DB settings:
    DB URL (e.g. "localhost")
    DB Port (e.g. "3306", "33006")
    DB Password (e.g. "password1234", "password")
3. Restart Mi Connector Docker container

If you don't add/update the DB values, they must be [ localhost, 33006, password1234 ].

Install Device Type Handler (DTH)

Manual install

Go to the SmartThings IDE
Click My Device Handlers
Click Create New Device Handlers
Copy content of file in the devicetypes/fison67 folder to the area
Click Create
Loop until all of file is registered

Install DTH using the GitHub Repo integration

Enable the GitHub integration before continuing the installation. Perform step 1 and 2 in the SmartThings guide to enable the GitHub integration for your SmartThings account.

1. Go to the SmartThings IDE
2. Select the My Device Handlers tab
3. Click on the "Settings" button
4. Click on the "Add new repository" option and fill in the following information:
    Owner: fison67
    Name: mi_connector
    Branch: master
5. Click on the "Save" button
6. Click on the "Update from Repo" button and select the "mi_connector (master)" option
7. Check the checkbox for the device types you need (or all of them) in the "New (only in GitHub)" column
8. Check the "Publish" checkbox and click on the "Execute Update" button

Install SmartApp

See the Manual file for details

Connect to the SmartThings IDE
Click My SmartApps
Click New SmartApp
Click From Code
Copy content of mi_connector.groovy & Paste
Click Create
Click My SmartApps & Edit properties (Mi Connector)
Enable OAuth
Update Click

Install SmartApp using the GitHub Repo integration

Enable the GitHub integration before continuing the installation. Perform step 1 and 2 in the SmartThings guide to enable the GitHub integration for your SmartThings account.

1. Go to the SmartThings IDE
2. Select the My SmartApps tab
3. Click on the Settings button
4. Click on the "Add new repository" option and fill in the following information:
    Owner: fison67
    Name: mi_connector
    Branch: master
5. Click on the "Save" button
6. Click on the "Update from Repo" button and select the "mi_connector (master)" option
7. Check the checkbox for the device types you need (or all of them) in the "New (only in GitHub)" column
8. Check the "Publish" checkbox and click on the "Execute Update" button
9. Select the My SmartApps tab
10. Click on the "Edit Properties" button for the Mi Connector SmartApp (fison67 : Mi Connector)
11. Click on the "OAuth" option and click on the "Enable OAuth" button
12. Click on the "Update" button

Step 3 and 4 are only needed if the repo has not been added earlier (e.g. in the DTH installation).

Install Bluetooth Bridge

See the Manual for details

Burn a binary to ESP32

Troubleshooting

Suddenly Mi Connector can't connect to Xiaomi devices

If IP address and token are correct but not connected, then:

Remove the device on MiHome
Add the device again on MiHome (Token is regenerated)
Add device in Mi Connector again

Device is not added automatically in auto mode

If the device is not added automatically by Mi Connector, it must be added manually:

Open Mi Connector device list web page (http://X.X.X.X:30000/devices)
Click on the "Add" button and fill in the IP address and token
Click on the "OK" button

Known devices:

Yeelight Desk Lamp

Yeelight Color Bulb
Yeelight White Bulb
Yeelight LED Strip
Mi Robot Vacuum
Mi Air Quality Monitor (PM2.5)
Mi Smart Power Strip 1
Mi Smart Power Strip 2

How to retrieve device token

https://www.home-assistant.io/components/vacuum.xiaomi_miio/#retrieving-the-access-token

When Zigbee devices is not working (No response)

Open up the MiHome App

From the Profile > Settings screen set to the Location field to “Mainland China”
Open up the device detail screen for the Gateway device
Click the triple dots button in the top-right corner of the screen to open the More screen
Open the About screen
At the bottom of the screen keep tapping the version number until a notice appears
From the same screen open the Local Area Network Communication Protocol screen
Slide the toggle element for “Local Area Network Communication Protocol” to enabled

9. Restart Mi Connector and then register gateway.
10. If you do step by step, but zigbee device is not working
install a nmap first.
sudo nmap -sU gatewayip -p 9898, 4321
..................................
PORT STATE SERVICE
4321/udp open|filtered rwhois
9898/udp open monkeycom

..................................
If Port is closed xiaomi gateway doesn't report zigbee status to mi connector anymore.
You have to buy new one and enable a lan protocol first, don't firmware update first!!!
Or have a look this link
https://community.openhab.org/t/solved-openhab2-xiaomi-mi-gateway-does-not-respond/52963/114

When you can't control device on ST

Maybe you put the server address on SmartApp (Mi Connector)
If it's wrong server address and device is added already, just stop docker and remove all devices which was added by Mi Connector.
Even if you change the address, the server address of each device is not updated. So you must remove devices.
And put the right server address.(ex. 192.168.1.22:30000), restart Docker container.
When you control device on ST, if you can see the following the log it means that communication is working well with ST.
2018-09-17 03:14:14 [info]: Requested to control by ST >> [zhimi.airpurifier.m1] >> {"id":"54532856","cmd":"power","data":"off"}
If you can't see anything, it's not working well..

Library

https://github.com/aholstenson/miio
https://github.com/zlargon/google-tts

License

This project is licensed under the MIT License - see the LICENSE file for details

Thanks

Many thanks to ShinJjang for testing and updating DTH.

Files

README.md

Latest commit

History

README.md

File metadata and controls

Mi Connector

Example Video

Donation

Table of contents

Release Notes

Version: 0.0.6

Version: 0.0.5

Version: 0.0.4

Version: 0.0.3

Version: 0.0.2

Documentation

Management Web Desktop Version

Management Web Mobile Version

DTH Example

Supported Devices

Wi-Fi Devices

Zigbee Devices

Bluetooth Devices

Installation

Prerequisites

Docker Versions

Stable Versions

Install Mi Connector API Server

Raspberry Pi

Synology NAS

Linux x86 x64

Install MySQL database

Raspberry Pi

Synology NAS

Linux x86 x64

Mi Connector configuration

Install Device Type Handler (DTH)

Manual install

Install DTH using the GitHub Repo integration

Install SmartApp

Install SmartApp using the GitHub Repo integration

Install Bluetooth Bridge

Troubleshooting

Suddenly Mi Connector can't connect to Xiaomi devices

Device is not added automatically in auto mode

How to retrieve device token

When Zigbee devices is not working (No response)

When you can't control device on ST

Library

License

Thanks
