neuVid Documentation

Quick Start

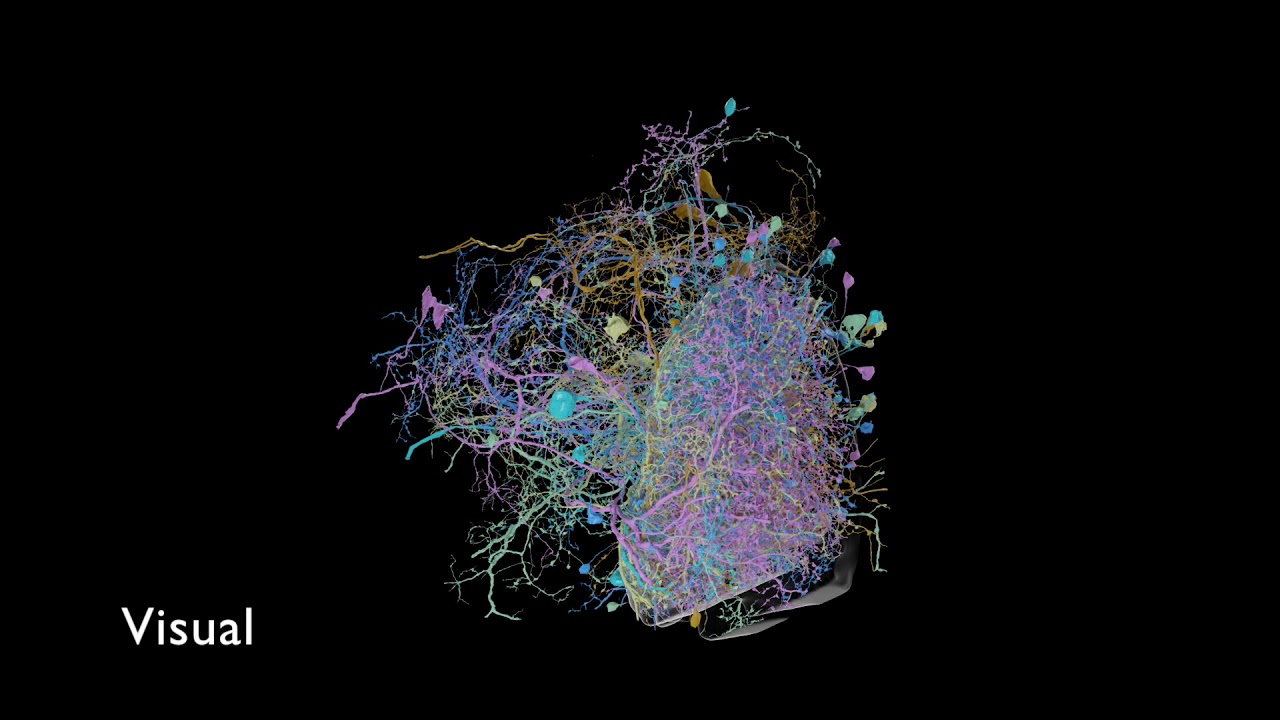

The following tutorial videos walk through the basics of using neuVid:

• Making Neuron Videos with neuPrint and neuVid
• Camera Motion in Neuron Videos with neuPrint and neuVid

Introduction

The goal of neuVid is to simplify production of the rather stereotyped videos common in neuroscience research on the Drosophila fruit fly. An important aspect of these videos is that they have simple camera motion: the camera usually starts looking at the fly brain face on (i.e., as if the fly were looking straight at the camera with its right on the camera's left), and translates freely but changes its viewing direction only by rotating around the vertical axis. The absence of free-form camera motion helps viewers stay oriented and understand what they are seeing. It also keeps neuVid simple, with simpler commands to specify the animation, and a simpler implementation.

This documentation focuses on the use of neuVid with data sets having explicit segmentations of neurons. It is also possible to use neuVid with some volumetric data sets lacking a segmentation, as described in this other documentation.

The Simplest Video

Probably the simplest video shows a single neuron spinning around the vertical axis. With neuVid, such a video can be defined with twelve lines of text, nicely formatted.

The input to neuVid is JSON, a simple structured filed format. Its most important elements are:

• arrays, which are lists of values, delineated by [ and ];
• objects, which are dictionaries or maps from keys to values, delineated by { and }.

Here is a neuVid input file for the simplest video:

{
  "neurons" : {
    "anchor" : [
      508689623
    ],
    "source" : "https://hemibrain-dvid.janelia.org/api/node/52a13/segmentation_meshes"
  },
  "animation" : [
    [ "frameCamera", { "bound" : "neurons.anchor" } ],
    [ "orbitCamera", { "duration" : 12.0 } ]
  ]
}

The video then would be generated using these steps, described in more detail in the Basic Usage documentation:

blender --background --python neuVid/importMeshes.py -- -i /tmp/simplest.json -o /tmp/simplest.blend
blender --background --python neuVid/addAnimation.py -- -i /tmp/simplest.json -ib /tmp/simplest.blend -o /tmp/simplestAnim.blend
blender --background --python neuVid/render.py -- -ib /tmp/simplestAnim.blend -o /tmp/framesFinal
blender --background --python neuVid/assembleFrames.py -- -i /tmp/framesFinal -o /tmp

The -o and -ib arguments may be omitted with their values being inferred from -i /tmp/simplest.json, allowing this more concise version:

blender --background --python neuVid/importMeshes.py -- -i /tmp/simplest.json
blender --background --python neuVid/addAnimation.py -- -i /tmp/simplest.json
blender --background --python neuVid/render.py -- -i /tmp/simplest.json -o /tmp/framesFinal
blender --background --python neuVid/assembleFrames.py -- -i /tmp/framesFinal -o /tmp

It is easiest to edit a JSON file in a modern text editor that understands and visually highlights the JSON file format; a good candidate that works on most platforms is Visual Studio Code. By default, JSON does not allow comments. In neuVid, comment lines starting with # or // are allowed, as they are stripped before further JSON processing. To prevent Visual Studio Code from getting confused by such comments, use the "Select Language Mode" button at the bottom of the window to switch from "JSON" to "JSON with Comments".

Be careful not to add a comma after the last item in a JSON block, like an array (e.g., use [1, 2, 3], not [1, 2, 3,]). This common mistake produces an error when neuVid parses the JSON file, but usually neuVid is able to give an error message indicating the location of the extraneous comma.

The Simplest Video, Deconstructed

The top-level JSON object in the input file has two major sections.

The neurons key starts the definitions section. This section associates names with data that will be imported as polygonal meshes that Blender can render. The neurons key's value is an object, and its anchor key is an example of a name. The anchor name is associated with that key's value, an array containing the identifier number 508689623. Any use of the name neurons.anchor thus refers to the neuron with that identifier.

Implicitly, all the named neurons are rendered as meshes. Where these meshes come from is described by the neuron object's source key. In this case, its value states that the meshes come from a DVID server, specifically, its segmentation_meshes data instance.

The first explicit use of the neurons.anchor name occurs in the other major section, the animation section. In the top-level object, the animation key's value is an array of commands that describe the animation that Blender will render. The first command, frameCamera, tells Blender how to position the camera: the bounding box for neurons.anchor should mostly fill the camera frame, with the camera looking at the fly's brain face on. Note that this useful camera composition is specified symbolically, without the use of absolute coordinates. Minimizing the need for absolute coordinates is one of the guiding principles of neuVid.

The other command in the animation section, orbitCamera, describes the first actual animation, or change over time. This command makes the camera take 12 seconds to rotate 360° around the center of neurons.anchor's bounding box, with the axis of rotation being the vertical axis. While the length of the animation is specified explicitly with the duration argument, the other details are defined implicitly: the center of rotation comes from neurons.anchor's bounding box because that was the target for the previous camera command, frameCamera, and the final rotation angle of 360° makes sense because full rotation back to the starting point is a common choice. This implicit behavior can be changed with optional arguments to orbitCamera, but having usable defaults is another guiding principle of neuVid.

When the input file is edited, some neuVid scripts need to be rerun, but which scripts depends on which sections were changed. Edits to the definitions section require rerunning the importMeshes.py script and then the addAnimation.py script. (If synapses are changed, then the buildSynapses.py script must be run before importMeshes.py; see the Synapses documentation.) Edits to the animation section require rerunning only the addAnimation.py script.

Previewing

For videos more complex than the simplest one, it is useful to see a preview before taking the time to render all the frames. The simplest way to do so is to run the interactive Blender application and load the file produced by addAnimation.py. Press the "Play Animation" button by the timeline to see a lower-quality rendering of the animation. (Note that with Blender 2.79, this interactive rendering of silhouette shading and transparency is rather bad, but the situation is significantly better for Blender 2.80 and later.)

To preview the real rendering, another approach is to render only every n frames (e.g., n of 24 would render on frame per second of final animation, for the default 24 frames per second). The render.py script supports this approach with the -j n (or --frame-jump n) argument.

To render only a single frame, f, use render.py's -s f -e f (or --frame-start f --frame-end f) arguments.

Categories

The neurons key in the simplest video is one example of a category. Names associated with data, like anchor, are defined within a category, and the category determines how that data will be rendered by Blender.

There are four categories in neuVid, each with its own key in the definitions section:

• neurons: Neurons are rendered as colored surfaces with shading and shadows (which look better with a path-tracing renderer like Cycles or Octane).
• rois: ROIs are rendered as white silhouettes.
• synapses: Synapses are rendered as colored balls, with a bit of extra brightness suggesting that they emit light.
• grayscales: This rather specialized category is for 2D images, with the typical usage being to show the grayscale images of the original electron microscopy (EM) data. These images are rendered as a special "picture in picture" element on in front of the 3D rendering.

Each category is optional. If a video shows only neurons, for example, it would not need the keys for rois, synapses, and grayscales.

Here is an example that adds the rois category to the previous example with neurons:

{
  "neurons" : {
    "anchor" : [
      508689623
    ],
    "source" : "https://hemibrain-dvid.janelia.org/api/node/52a13/segmentation_meshes"
  },
  "rois" : {
    "source" : "https://hemibrain-dvid.janelia.org/api/node/52a13/roisSmoothedDecimated",
    "step1" : [
      "MB(R)", "LAL(R)"
    ]
  },
  "animation" : [
    [ "setValue", { "meshes" : "rois.step1", "alpha" : 0.05 } ],
    [ "frameCamera", { "bound" : "neurons.anchor" } ],
    [ "orbitCamera", { "duration" : 12.0 } ]
  ]
}

The rois category in this example defines a name, rois.step1 that is associated with two ROIs. The source key specifies that the meshes for these ROIs are loaded from another data instance of the DVID server, roisSmoothedDecimated. The actual ROI names should follow the standards of DVID as presented by the neuPrintExplorer user interface (e.g., aL(R), b'L(R), EB, etc.). Note that the order of keys in an object is irrelevant, and the rois category has the source key first.

Note also that the same name can be reused in different categories (e.g., rois.step1 could have been rois.anchor without conflicting with neurons.anchor), and the names in the categories need not match.

The animation section in this example has a new command, setValue. This command changes the alpha (transparency) value for the meshes associated with the rois.step1 name. This one command affects all that name's meshes, so it affects both MB(R) and LAL(R). The Transparency and Color documentation, below, discusses alpha in more detail. Using names as command arguments provides indirection, so an animation for a neuron can be defined without explicit mention of that neuron's identifier, and can be reused with a different neuron simply by changing the name definition.

Both source values are DVID URLs in this example. Using such a URL, neuVid fetches the appropriate meshes and saves them as OBJ files in local directories to be used by Blender. For neurons the directory is neuVidNeuronMeshes, and for rois it is neuVidRoiMeshes, with both directories created in the same directory as the input JSON file. As an alternative, the source value can specify the directory Blender should use for the OBJ files. For neurons, OBJ files in this directory should have names like 508689623.obj. For rois, it does not work to use the standard ROI names, as most platforms do not allow parentheses so file names like MB(R).obj are not valid. A solution is to use names like MBR.obj and LALR.obj, making sure that the rois category matches:

{
  "neurons" : {
    "anchor" : [
      508689623
    ],
    "source" : "https://hemibrain-dvid.janelia.org/api/node/52a13/segmentation_meshes"
  },
  "rois" : {
    "source" : "/tmp/localMeshDirectory/",
    "step1" : [
      "MBR", "LALR"
    ]
  },
  "animation" : [
    [ "setValue", { "meshes" : "rois.step1", "alpha" : 0.05 } ],
    [ "frameCamera", { "bound" : "neurons.anchor" } ],
    [ "orbitCamera", { "duration" : 12.0 } ]
  ]
}

Time

The simplest video uses the orbitCamera command with a duration argument to make animated camera motion start at the beginning of the video and end 12 seconds later. To specify changes that start at any time after the beginning of the video, use the advanceTime command. Here is an example:

{
  "rois" : {
    "source" : "https://hemibrain-dvid.janelia.org/api/node/52a13/roisSmoothedDecimated",
    "step1" : [
      "MB(R)"
    ],
    "step2" : [
      "LAL(R)"
    ]
  },
  "neurons" : {
    "anchor" : [
      508689623
    ],
    "source" : "https://hemibrain-dvid.janelia.org/api/node/52a13/segmentation_meshes"
  },
  "animation" : [
    [ "frameCamera", { "bound" : "rois.step1" } ],

    [ "advanceTime", { "by" : 1.0 } ],

    [ "frameCamera", { "bound" : "rois.step2", "duration" : 2.0 } ],
    [ "advanceTime", { "by" : 2.0 } ],

    [ "advanceTime", { "by" : 1.0 } ],

    [ "frameCamera", { "bound" : "rois.step1 + rois.step2", "duration" : 2.0 } ],
    [ "advanceTime", { "by" : 2.0 } ],

    [ "advanceTime", { "by" : 1.0 } ]
  ]
}

The animation opens with the camera framed on the bounds for rois.step1. The next command is advanceTime by 1.0 seconds (omitting the extra JSON syntax). The result is that the subsequent frameCamera command with duration 2.0 causes the camera to start moving one second into the video and end three seconds in.

Note that even though that frameCamera command specifies duration 2.0, the time at which any subsequent command would start remains at one second into the video. Thus, additional advanceTime commands are necessary to make the subsequent commands start later.

Note also the use of two advanceTime commands, one with duration 2.0 and then another with duration 1.0. The same effect would be possible with one advanceTime command of duration 3.0, but using two commands reinforces the idea that there is time advancement to match the duration of the frameCamera command for rois.step2, and then additional time advancement to add a pause before the start of the next command. This approach makes it a bit simpler to edit the input to change the length of the pause.

The next command is a third frameCamera. It specifies that the framing should be on the bounds of rois.step1 + rois.step2. The effect is to make the camera frame on the union of the two bounds. No set operators other than + are supported for the bound argument, but the next section discusses a more powerful case for other arguments of other commands.

A variety of interesting animations are possible by combining commands like frameCamera, orbitCamera, and advanceTime, but not all combinations are supported. It does not work to "nest" a frameCamera command in the middle of the duration of an orbitCamera command, for example. A solution is to break the longer-duration orbitCamera into two shorter-duration commands, with the frameCamera in between them.

Transparency and Color

The transparency of a mesh is controlled by the alpha value on the mesh's material. The Catetories documentation showed how the setValue command can specify an alpha for a mesh for the duration of a video.

To vary the alpha, use the fade command. It takes a duration argument so the alpha can change gradually over time, which looks more appealing than an abrupt change. Here is an example:

{
  "neurons" : {
    "source" : "https://hemibrain-dvid.janelia.org/api/node/52a13/segmentation_meshes",
    "anchor" : [
      508689623
    ],
    "connectedToAnchor" : [
      976506780, 763730414
    ]
  },
  "animation" : [
    [ "frameCamera", { "bound" : "neurons.anchor + neurons.outputsToAnchor" } ],
    [ "orbitCamera", { "duration" : 12.0 } ],

    [ "advanceTime", { "by" : 4.0 } ],

    [ "fade", { "meshes" : "neurons.connectedToAnchor", "startingAlpha" : 0.0, "endingAlpha" : 1.0, "duration" : 2.0 } ],
    [ "advanceTime", { "by" : 2.0 } ],

    [ "advanceTime", { "by" : 4.0 } ],

    [ "fade", { "meshes" : "neurons.connectedToAnchor", "startingAlpha" : 1.0, "endingAlpha" : 0.0, "duration" : 2.0 } ],
    [ "advanceTime", { "by" : 2.0 } ]
  ]
}

An alpha of zero makes a mesh completely transparent, while an alpha of one makes it completely opaque. If no alpha is specified with a setValue or fade command, it is one by default, so neurons.anchor keeps an alpha of one for the whole video.

Note that the two fade commands have starting and ending times completely within the duration of the orbitCamera command. It is fine to overlap animation commands in this way, to create more sophisticated effects.

Color is closely related to transparency. By default, neuVid assigns colors to neuron meshes automatically, drawing from a six-color palette:

This palette is based on a common color-blind-friendly palette. The colors have been changed slightly to make their relative luminance values (the percentages in the third row) more similar. Relative luminance describes the brightness of the color as perceived by a human, and making these values more similar reduces the chance that some colors will appear more prominent. The change to relative luminance made the palette somewhat less effective in color-blind conditions, but nevertheless it works relatively well for 3D renderings, where lighting also affects the colors.

It is possible to override the automatic assignment of colors to neuron meshes. The setValue command with the argument color is a good way to make a change for the whole video, while fade can be used to interpolate between the startingColor and endingColor arguments over a duration. The value of a color, startingColor or endingColor argument can take any of several forms, as illustrated in the following example:

{
  "neurons" : {
    "source" : "https://hemibrain-dvid.janelia.org/api/node/52a13/segmentation_meshes",
    "main" : [
      508689623
    ],
    "partners" : [
      5813022375, 763730414
    ],
    "more" : [
      914778159, 976506780
    ],
    "special" : [
      763730414
    ]
  },
  "animation" : [
    [ "setValue", { "meshes" : "neurons.main", "color" : 3 } ],
    [ "setValue", { "meshes" : "neurons.special", "color" : "green" } ],
    [ "setValue", { "meshes" : "neurons.partners + neurons.more - neurons.special", "color" : "#ababab" } ],

    [ "frameCamera", { "bound" : "neurons.main" } ],
    [ "orbitCamera", { "duration" : 12.0 } ]
  ]
}

Each of the three setValue commands shows one of the ways of specifying colors:

• an index value between 0 and 5, to choose from the colors in the order of the image, above;
• a name of a color, from the choices in the bottom rows of the image, above;
• a custom color using the CSS hex notation, a string starting with # followed by two hexidecimal digits each for the red, green, and blue components.

Note that int the last setValue command, the meshes argument has the value neurons.partners + neurons.more - neurons.special. The effect is to assign the #ababab color to all the neurons in neurons.partners and neurons.more except the neurons in neurons.special. Any meshes argument can use set operations like these on names from the neurons and rois categories, but not from the synapses category.

The rois category renders meshes as silhouettes, with mesh faces becoming more transparent as they come closer to facing the camera. To control how quickly this transition to transparency occurs, the rois category has an optional key, exponents. The default value is five, and a higher value makes a mesh transition to transparency faster. Here is an example assigning a value of eight to a group of ROIs that should be deemphasized:

{
  "rois" : {
    "source" : "https://hemibrain-dvid.janelia.org/api/node/52a13/roisSmoothedDecimated",
    "deemphasized" : [
      "FB", "EB"
    ],
    "emphasized" : [
      "NO"
    ],
    "exponents" : {
      "deemphasized" : 8
    }
  }
}

In the exponents object, the special key * refers to all ROIs not explicitly mentioned in other keys. See the Tips documentation, below, for some ideas about how to use exponents and alpha.

Synapses

Synapses appear as little spheres, and are defined by names in the synapses category. Here is a simple example:

{
  "neurons" : {
    "source" : "https://hemibrain-dvid.janelia.org/api/node/52a13/segmentation_meshes",
    "anchor" : [
      508689623
    ]
  },
  "synapses" : {
    "source" : "https://neuprint.janelia.org/?dataset=hemibrain:v1.0.1",
    "anchorPSD" : {
      "neuron" : 508689623,
      "type" : "post"
    }
  },
  "animation" : [
    [ "setValue", { "meshes" : "synapses.anchorPSD", "color" : "#303030" } ],
    [ "frameCamera", { "bound" : "neurons.anchor" } ],

    [ "fade", { "meshes" : "neurons.anchor", "startingAlpha" : 1.0, "endingAlpha" : 0.8, "duration" : 2.0 } ],
    [ "fade", { "meshes" : "synapses.anchorPSD", "startingAlpha" : 0.0, "endingAlpha" : 1.0, "duration" : 2.0 } ],
    [ "advanceTime", { "by" : 2.0 } ],

    [ "pulse", { "meshes" : "synapses.anchorPSD", "toColor" : "#ffffff", "duration" : 4.0 } ],
    [ "advanceTime", { "by" : 4.0 } ]
  ]
}

In the synapses category, the source key must be a neuPrintExplorer URL. Each other key defines the name for a synapse set. In this example, the synapses.anchorPSD name refers to to synapses from the neuron 508689623, and the type key being post limits these synapses to the post-synaptic sites (PSDs).

PSDs have a gray color in the NeuTu proofreading system, so the setValue command changes the meshes for synapses.anchorPSD to have a similar color.

Synapse locations can be slightly inside the branches of neurons, which makes the display of synapses and neurons as solid objects challenging. It helps somewhat to make the neurons slightly transparent, so the first fade command does exactly that, making neurons.anchor become 80% opaque over a period of two seconds. Simultaneously, the other fade command makes synapses.anchorPSD fully opaque.

Even with this fading, smaller synapse sets may be hard to notice, especially if they are colored gray. The pulse command can help by gently (once per second) cycling from the current color to a highlighting color, which is white in this example.

As described in more detail in the Usage with Synapses documentation, animations with synapses require the running of an extra script, buildSynapses.py. This script queries the synapse locations from the neuPrint server mentioned in the source URL. The full set of steps to generate the animation are as follows:

python neuVid/buildSynapses.py -i /tmp/synapses.json
blender --background --python neuVid/importMeshes.py -- -i /tmp/synapses.json
blender --background --python neuVid/addAnimation.py -- -i /tmp/synapses.json
blender --background --python neuVid/render.py -- -i /tmp/synapses.json -o /tmp/framesFinal
blender --background --python neuVid/assembleFrames.py -- -i /tmp/framesFinal -o /tmp

The object for anchorPSD has two keys, but neuVid supports additional keys to fine tune a synapse set:

• The type value can be pre for pre-synaptic sites (T-bars) or post for post-synaptic sites (PSDs), or omitted for both. For pre, use setValue color yellow to match the coloring of NeuTu.
• If radius specifies a number then the rendered sphere for each synapse has that radius.
• If partner specifies the identifier for another neuron, then synapses are limited to those shared with that neuron.
• If roi specifies the name of an ROI, then synapses are limited to those in that ROI. Boolean operators are supported (e.g., "roi" : "not EB and not FB" for only the synapses outside of both EB and FB) but not grouping parentheses.
• The includeWithin key can specify a bounding-box object to put spatial limits on the synapses. This object can have any combination of xMin, xMax, yMin, yMax, zMin or zMax as keys (e.g., "includeOnly" : { zMax : 19000 } omits any synapse with z coordinates larger than 19,000).

Grayscale Images

Incomplete

• The grayscales category, names map to:
  • source: one image, or an .avi file for a "movie texture"
  • position
• Use centerCamera to get the position.
• Use showPictureInPicture to animate a rotating "card" that shows the image or movie texture
• Card animation makes sense for EM slices, which are small and perpendicular to the standard viewing angle

• Use showSlice to animate a "card" shwoing the image or movie texture without the initial and final rotation of showPictureInPicture
  • source: one image, or an .avi file for a "movie texture"
  • bound: the image will animate through this bounding box
  • euler: angles for the card, as an alternative to bound
    • position
    • scale
    • distance
  • duration
  • delay
  • fade

Renderers

Incomplete

Renderer	Quality	Speed	Capacity	Ease of use	Free
Eevee	*	***	***	***	Yes
Cycles	***	*	***	***	Yes
Octane	***	**	*	**	No

• "Capacity" refers to the amount of data (i.e., neuron meshes, ROI meshes) that the renderer can handle. Octane's capacity is limited by GPU memory. Cycles can use either the CPU or the GPU, and the CPU often can handle more data. On a machine with 32 GB of memory, for example, it has rendered a scene with almost one-quarter billion mesh faces.

• Rendering with Cycles:

  • The default choice.
  • If black spots appear on fading objects (i.e., objects with alpha less than one), try a --transparent-max-bounces (or -tmb) value greater than the default of 32.
  • Uses only the CPU by default. To use the GPU, use one of the following flags, to choose the options described in the Blender documantion:
    • --optix (or -optix)
    • --cuda (or -cuda)
    • --hip (or -hip)
    • --metal (or -metal)
  • Wastes time on a "Synchronizing object" step for every object at almost every frame. Use --persistent (or -p) to avoid it, but note that this option causes a crash if the system does not have sufficent memory (RAM).

• Rendering with Octane:

  • -oct or --octane argument for render.py
  • --roi argument render.py
  • compRoisAndNeurons.py script

• Rendering with Eevee:

  • -ee or --eevee argument for render.py

Neuroglancer

Incomplete

Neuroglancer has its own way of rendering videos. Documentation for using Neuroglancer's own video-generation script consists of the comments at the top of the script. To use the script, install the necessary support software with Conda:

conda create -n ng -c conda-forge geckodriver pillow numpy requests tornado six google-apitools google-auth atomicwrites
conda activate ng
pip install neuroglancer

Copy the Neuroglancer URLs for key moments and paste them into a text file, say, /tmp/ng.txt. Separate these URL lines with timing lines, containing just the number of seconds to advance before applying the next URL. Generate frames from ng.txt (using Firefox to do the rendering in this example):

python -m neuroglancer.tool.video_tool render --browser firefox --hide-axis-lines --height=1080 --width=1920 /tmp/ng.txt /tmp/framesNg

Assemble the video:

blender --background --python neuVid/assembleFrames.py -- -i /tmp/framesNg -o /tmp

To use neuVid instead, convert ng.txt to a JSON file for neuVid input:

python neuVid/importNg.py -i /tmp/ng.txt -o /tmp/fromNg.json

Then proceed as usual.

Why convert to neuVid:

• Smoother animation transitions, with "slow in and slow out"
• More believable rendering, with global illumination effects from Cycles or Octane
• Simpler editing

To see how neuVid simplifies editing, note that neuVid's input is commands to create animation rather than the state at key moments in the animation as with Neuroglancer. Many of the edits involved in refining a video are small when expressed as commands, but have effects on much or all of the state of the video, and so are large when expressed as changes to that state.

Consider the following example:

1. Frame the camera on neuron A
2. Start orbiting the camera around A
3. Two seconds later, fade on neuron B
4. Two seconds later, fade on neuron C
5. Two seconds later, fade off neuron A
6. Two seconds later, stop orbiting the camera

State in the corresponding Neuroglancer URLs:

1. Camera facing A, camera rotation 0º, A visible, B not visible, C not visible
2. Camera facing A, camera rotation 90º, A visible, B visible, C not visible
3. Camera facing A, camera rotation 180º, A visible, B visible, C visible
4. Camera facing A, camera rotation 270º, A not visible, B visible, C visible
5. Camera facing A, camera rotation 360º, A not visible, B visible, C visible

The edit is to make the camera frame on B instead of A.

All the state URLs must be updated because every one encodes the camera facing A.

On the other hand, consider the corresponding neuVid input:

[ "frameCamera", { "bound" : "neurons.A" } ],
[ "orbitCamera", { "duration" : 4.0 } ],
[ "advanceTime", { "by" : 1.0 } ],
[ "fade", { "meshes" : "neurons.B", "startingAlpha" : 0.0, "endingAlpha" : 1.0, "duration" : 1.0 } ]
[ "advanceTime", { "by" : 1.0 } ],
[ "fade", { "meshes" : "neurons.C", "startingAlpha" : 0.0, "endingAlpha" : 1.0, "duration" : 1.0 } ]
[ "advanceTime", { "by" : 1.0 } ],
[ "fade", { "meshes" : "neurons.A", "startingAlpha" : 1.0, "endingAlpha" : 0.0, "duration" : 1.0 } ]
[ "advanceTime", { "by" : 1.0 } ]

The edit in this case involves merely changing the first command's "neurons.A" argument to "neurons.B".

Another example: change the camera orbiting to total 180º instead of 360º.

This kind of editing is common during iterative refinement to reach a desired final video. So the best use of Neuroglancer might be to set up the initial, rough version of a video, with neuVid being used for the iterations of editing to reach the final result.

Current limitations of importing Neuroglancer into neuVid:

• Only segmentation meshes (e.g., neurons, ROIs) are imported; other data (grayscale images, synapses) are ignored.
• Only meshes in OBJ format or the Neuroglancer legacy single-resolution format are supported.
• Only one camera framing is created automatically: an initial framing, on a prominent body chosen by heuristics. Once the translation has produced a neuVid input JSON file, though, it is easy to add additional frameCamera commands as needed.
• Only camera orbiting around principal axes (X, Y, or Z) is supported.

SWC Files

Incomplete

Example input JSON fragment:

{
  "neurons": {
    "source": "./directory-of-swc-files",
    "cerebellum": ["AA0431.swc", "AA0964.swc"]
  },
  ...
}

The .swc file extension can be omitted:

{
  "neurons": {
    "source": "./directory-of-swc-files",
    "cerebellum": ["AA0431", "AA0964"]
  },
  ...
}

A SWC file contains a sequence of nodes, with parent relationships defining a hierarchy or skeleton. Each segment of the skeleton is represented in neuVid as a truncated cone, which is a cylinder if the radii at the ends (parent node, child node) are equal.

Optional aguments to importMeshes.py to control the generation of OBJ files from SWC files:

• --swcvc [default value: 12]: the vertex count for a cross section of the cones (cylinders). For example, a value of 12 means the cones have 12 facets. The default values works well for large collections of neurons. A larger value (e.g, 16 or 32) might improve the visual quality for videos with close-up views of smaller collections of neurons.
• --swcar [default value: 10]: a multiplicative factor for the radii of axonal segments (SWC type 2). For example, SWC files from the Janelia MouseLight project have all radii set to 1, and they appear too thin without being multiplied by some factor.
• --swcdr [default value: 15]: a multiplicative factor for the radii of dendritic segments (SWC type 3). A convention of the MouseLight project is to make dendrites appear slightly fatter than axons.

An orientation correction is helpful with some SWC files, like those from the Janelia MouseLight project. Neurons from this project can be searched and downloaded from the Mouse Light Neuron Browser. For theses neurons, an initial orbitCamera command will set the default neuVid camera to look directly at the mouse's face, and a lightRotationX statement will make the lighting look more appealing:

{
  "rois": {
    "source": "neuVid/test/test-roi-source",
    "shell": ["brain-shell-997"]
  },
  "neurons": {
    ...
  },
  "lightRotationX": 20,
  "animation": [
    ["orbitCamera", {"axis": "x", "endingRelativeAngle": -90, "duration": 0}],
    ...
  ]
}

Note also that a properly oriented mesh for the overall brain shell is available as test/test-roi-source/brain-shell-997.obj from this repo.

Axes

Incomplete

In this example, the biological axes are rotated slightly from the Cartesinan axes, by angles -10 degrees around X and 20 degrees around Z. The rotated Y axis is labeled as the anterior-posterior axis, and the rotated Z axis is labeled as the ventral-dorsal axis. The rotated X axis is unlabeled. These biological axes start out invisibile and then fade on partway through the animation.

{
  "neurons" {
    ...
  },
  "rois" {
    ...
  },
  "axes" {
    "main": {
      "labels": {"+y": "A", "-y": "P", "+z": "V", "-z": "D"},
      "rotation": [-10, 0, 20]
    }
  }
  "animation" [
    ...
    ["fade", {"meshes": "axes.main", "startingAlpha": 0, "endingAlpha": 1, "duration": 1}],
    ...
  ]
}

Additional options for entries in "axes":

• "position" (default [0.945, 0.099], in the bottom-right): normalized horizontal and vertical, between 0 and 1, with [0, 0] at bottom-left
• "size" (default 0.0245): normalized height, between 0 and 1

Natural Language Input and Generative AI

Incomplete

Do not type any sensitive personal information into generate, because this information will be sent to the LLM model host (OpenAI).

To change the OpenAI or Anthropic API key, use the "Settings/API key..." menu item on the main menu bar.

The "conditioning" data that is included in the generative AI prompts is in the file documentation/training.md. The examples in this file are helpful for a human learning to use the system, too.

The generative AI works pretty well with the most powerful models: gpt-4-turbo-preview from OpenAI, or claude-3-opus-20240229 from Anthropic. The less expensive models (e.g., gpt-3.5-turbo or claude-3-sonnet-20240229) may generate acceptable results for simpler descriptions but do not work as well in general. Even the powerful models can make mistakes. More common mistakes include:

• omitting the "advanceTime" command necessary to let another command finish
• omitting the initial light rotation and "orbitCamera" necessary to put the FlyEM MANC and FlyWire data sets in the proper orientation
• not understanding multiplication (e.g., "Give the synapses the default radius * 2")

Sometimes a description that generates the wrong JSON one time will generate the right JSON the next time.

The generate application calls the generate() function from gen.py. That function can be run from the command line, too, as in this example:

$ cd neuVid/neuVid
$ export OPENAI_API_KEY=sk-a...9O2U
$ python gen.py -o /tmp/example.json "Frame on IN00A001s 10477 and 10977 from the MANC. Orbit 30 degrees taking 3 seconds."

There is a suite of tests that can be run as follows:

$ cd neuVid/test
$ export OPENAI_API_KEY=sk-a...9O2U
$ python test-generate.py test-generate-input.txt

The environment variable for the Anthropic API key is ANTHROPIC_API_KEY. By default, the results go to a file with a path like /tmp/test-generate-results_gpt-4_2023-12-08_10:20:30.txt. To check the tests, compare this file to test-generate-expected.txt.

Note that running the tests is slow (to avoid OpenAI throttling) and costs around $7 with the current OpenAI pricing.

Compute Cluster Usage

Incomplete

Additional arguments to clusterRender.py:

• --cluster [-cl] [optional, default value: "gpu_rtx8000"]: the name of the cluster to use. Note that for best performance, if the cluster uses GPUs (e.g., at Janelia, the cluster name has the "gpu_" prefix) then the additional arguments to the clusterRender.py script should tell Blender to use a GPU (e.g., --optix or --cuda on Linux, which is the typical operating system for a compute cluster).
• --slots [-n] [optional, default value: 32]: the number of slots (cores) to be used for the job. Note that for best peformance, Blender must know this value and use it for its thread count. To this end, clusterRender.py automatically passes this value as the --threads argument to render.py, so do not explicitly add another --threads argument.
• --log [-l] [optional, default value: a file having the same name as the input JSON file and the suffix _log_ plus a timestamp]: the log file to contain the output of the bsub command.
• --async [-as] [optional, default value: False]: run clusterRender.py asynchronously, returning immediately instead of waiting for the job to come off the "pending" queue and run to completion.
• --split [optional, default value: no splitting]: splits the frames within one video across cluster nodes, by setting the --frame-start (-s) and --frame-end (-e) arguments of the render.py calls.
  • --split n : creates n jobs dividing the video frames evenly
  • --split : uses ["fade", {"startingAlpha: 0, ...}] (i.e., fade start) commands as boundaries for splitting the frames

Parallelizing importMeshes.py with clusterImportMeshes.py:

• Works only if "neurons" contains "separate": true, to make separate Blender files for the neurons with different sources, as described in the next section.
• Submits a separate importNeurons.py job for each separate Blender file (i.e., each item in the "neurons" "source" array).
• If there are M separate files, then the job for file i of M has --split i M as and additional argument to importNeurons.py
• Blender uses only one thread (CPU core) when importing, so the jobs have -n 1.
• Given that many modern desktop computers have more than one core, importing can be parallelized on a single such computer (if no cluster is available) by manually using --split i M as additional arguments to importNeurons.py. Try a value of M = 4 (regardless of the number of separate files) as a starting point, and check the resulting speedup before trying a larger M.
• A final importMeshes.py with --skipExisting is needed to build the overall Blender file that references the separate files. This run also imports the ROIs and synapses (if present).

For clarity, clusterRender.py and clusterImportMeshes.py echo the actual bsub commands they will use to submit jobs before peforming the submission.

Some details of the bsub command may be specific to the cluster at Janelia.

Advanced

Incomplete

• Runtime arguments to importMeshes.py:

• --skipExisting (-sk): do not download existing neuron/ROI/synapse meshes, which have been converted to OBJ files by earlier sessions

• Input JSON arguments for render.py:

  • fps
  • lightPowerScale
  • lightSizeScale
  • lightDistanceScale
  • lightColor
  • lightRotationX in degrees
  • lightRotationY in degrees
  • lightRotationZ in degrees
  • useShadows
  • useSpecular
  • fovHorizontal or fovVertical in degrees (also used by addAnimation.py, for interactive preview)

• Runtime arguments to render.py:

  • --skipExisting (-sk): do not rerender existing frames in the output directory, frames that have been rendered by earlier sessions

• Large segmentations:

  • If there are N neurons and N is large, try breaking them up into M groups (e.g., by cell type) and show only one (or a few) groups at a time. There is support in neuVid for making this approach easier.
  • In the JSON file's "neurons" category:
    • Add "separate": true.
    • Make "source" and array with M elements (one per group). The actual sources (array elements) do not need to differ, but there must be M of them.
    • Make each "neuron" category key an object with keys "ids" and "sourceIndex", the latter referring to an item in the "source" array.
  • Then importMeshes.py writes each of the M groups in its own Blender file, with the suffix _neurons_i, where i is from 0 to M-1. Such a Blender file is loaded by render.py only when that group is visible.
  • The --skipExisting (-sk) argument to importMeshes.py will reuse all existing _neurons_i files without rebuilding them, which can save considerable time if some unrelated part of the JSON file changed (e.g., the set of ROIs).
  • For an example, see test/test-separate-files-hemi.json.
  • Made the "Fly Hemibrain Overview" video possible, rendered with Octane

Tips

Using exponents and alpha for ROIs

The visual appearance of ROIs is a matter of personal taste, but here are some ideas that have worked well in practice.

Under normal circumstances, the rois category's exponents key is not needed, and an alpha of 0.05 looks reasonable for all ROIs:

To emphasize one ROI, give it an alpha of 0.2 and deemphasize all the other ROIs by giving them exponents values of 8:

To give all ROIs a lighter look, use the * key in exponents to give everything a value of 7 or 8.

Getting position values

The neuVid input avoids literal positions as much as possible (e.g., frameCamera sets the camera position implicitly so some objects fill the view). Nevertheless, literal positions sometimes are unavoidable (e.g., when the camera view should be filled with just part of an object, with centerCamera). One way to get the coordinates of a literal position is to use neuPrintExplorer: in the skeleton view, shift-click on a particular position on a neuron body sets the camera target to that position. All that is needed, then, is a way to get that target position from neuPrintExplorer.

For better or worse, neuPrintExplorer's current user interface does not present that target position. The best work-around for now is to get the target position from the URL neuPrintExplorer creates for the skeleton view. Doing so requires a few particular steps, to force the URL to be updated accordingly:

1. Do a "Find Neurons" query for the neuron body in question.
2. Click on "eye" icon to split the query result panel, with the right half being a skeleton view showing the neuron.
3. Close the skeleton viewer in the right half.
4. Go to the "SKELETON" tab that still exists after the "NEUROGLANCER" tab.
5. Shift-click to set the camera target.
6. Go to the "NEUROGLANCER" tab, then immediately back to the "SKELETON" tab. This switching of tabs makes the neuPrintExplorer URL contain a "coordinates" section near the end, with the camera position and target.
7. In a terminal shell run the script to parse that URL and extract the target. Note: with most shells, the URL must be enclosed in single quotes(') to avoid problems due to the special characters in the URL.

python neuVid/parseTarget.py 'https://neuprint.janelia.org/results?dataset...%5D%5Bcoordinates%5D=31501.69753529602%2C63202.63782931245%2C23355.220703777315%2C22390.66247762118%2C24011.276508917697%2C31327.48613433571&tab=2&ftab='

9. The camera target position will be printed to the shell, in a form that can be used directly with, say, centerCamera.

[22391, 24011, 31327]

10. To get another target position, shift-click again, and then repeat steps 6 through 9 again. It is necessary to go to the "NEUROGLANCER" tab and then back to the "SKELETON" tab to force the URL to update with the new camera target.

Command Summary

Incomplete

General command syntax:

[ "commandName", { "argumentKey1" : argumentValue1, ..., "argumentKeyN" : argumentValueN }]

advanceTime

Required arguments:

• by

centerCamera

Required arguments:

• position

Optional arguments:

• fraction (default: 1)
• duration (default: 1)

fade

Required arguments:

• startingAlpha or startingColor
• endingAlpha or endingColor
• meshes

Optional arguments:

• duration (default: 1)
• stagger (default: false) : true means meshes change alpha/color one by one at an accelerating rate; "constant" means they change one by one at a constant rate.

The stagger argument to fade makes meshes appear in the order they are listed. In the last example, here, the meshes appear in the order their IDs are listed in the file ./ids.txt:

{
  "neurons": {
    "ascending": [424789697, 5813022341, 612371421, 673509195],
    "descending": [673509195, 612738462, 612371421, 487925037],
    "file": { "ids": "./ids.txt" },
    "source": "https://hemibrain-dvid.janelia.org/api/node/52a13/segmentation_meshes"
  },
  "animation": [
    [ "fade", { "meshes": "neurons.ascending", "startingAlpha": 0, "endingAlpha": 1, "duration": 1, "stagger": "constant" } ],
    [ "advanceTime", { "by": 1 } ],
    [ "fade", { "meshes": "neurons.descending", "startingAlpha": 0, "endingAlpha": 1, "duration": 1, "stagger": "constant" } ],
    [ "advanceTime", { "by": 1 } ],
    [ "fade", { "meshes": "neurons.file", "startingAlpha": 0, "endingAlpha": 1, "duration": 1, "stagger": "constant" } ],
    [ "advanceTime", { "by": 1 } ],
    [ "fade", { "meshes": "neurons", "startingAlpha": 0, "endingAlpha": 1, "duration": 1, "stagger": "constant" } ],
    [ "advanceTime", { "by": 1 } ]
  ]
}

Note that in the last "fade" command, which operates on all neurons by specifying a general "meshes": "neurons" (with no . and group name), the order of the neurons is undetermined.

The sortByBbox.py script is helpful for specifying a meaningful ordering. It takes a list of mesh IDs and a directory of mesh files, and produces a list of IDs sorted by various properties of the meshes' bounding boxes. Its arguments are:

• -input (-i): the path to the file with the unordered mesh IDs
• -inputmeshes (-im): the path to the directory with the mesh files
• -output (-o): the path to the resulting file of ordered mesh IDs
• --sort min|max|mid|size: the bounding box property to sort on, where mid means center, and size means volume
• --axis 0|1|2: the axis where 0 means x, 1 means y, 2 means z, to be used with min, max, or mid
• --descending: sort in descending order, instead of the default of ascending order

For example:

blender --background --python sortByBbox.py -- --input ids-original.txt --inputmeshes neuVidNeuronMeshes --output ids-sorted.txt --sort min --axis 2 --descending

frameCamera

Required arguments:

• bound

Optional arguments:

• duration (default: 1)

label

Required arguments:

• text
• duration

Optional arguments:

• size (default: 0.053): in normalized height units, between 0 and 1
• position (default: "bottom"): positional string, like "top" or "bottom", or an [x, y] position, in normalized units, between 0 and 1
• color (default: "white")

orbitCamera

Optional arguments:

• around (default: the last camera target)
• axis (default: z): x, y or z
• localAxis: an alternative to axis giving rotation around the camera's local x, y or z (determined by previous orbits)
• endingRelativeAngle (default: -360)
• duration (default: 1)
• scale (default: 1) : non-default values give a "spiral" effect

poseCamera

Required arguments:

• target : corresponds to Neuroglancer view state position
• orientation : corresponds to Neuroglancer view state projectionOrientation
• distance : corresonds to Neuroglancer view state projectionScale

Optional arguments:

• duration (default: 0) : note that animation to a pose, or between poses, can loop around in surprising ways

pulse

Required arguments:

• meshes

Optional arguments:

• toColor (default: #ffffff)
• duration (default: 1)
• rate (default: 1)

setValue

Required arguments:

• meshes
• alpha or color or exponent (for ROI silhouette shading) or threshold (for ROI transparent depth)

showPictureInPicture

Required arguments:

• source

Optional arguments:

• duration (default: 3)

showSlice

Required arguments:

• source
• bound or euler

Optional arguments:

• duration (default: 3)
• fade (default: 0.5)
• delay (default: fade value)
