PX100 RL Trained Object Picker

Authors

Sonny George & Alex Danilkovas

ROS Version

Noetic

Dependencies

This workspace relies on the following software and libraries:

ROS Packages

Python Libraries

  • rospy
  • gym
  • torch
  • numpy

Other Tools

  • Gazebo
  • RViz

Codebase Details

Altough a ROS package, this repository is meant to be used as a workspace, object-picker supports the Interbotix px100 robot arm and includes:

  1. Training RL policies (PPO or SAC) for picking up a "T"-shaped object.
  2. Initializing policies with IL (Behavioral Cloning).
  3. Running trained policies on the real robot.
  4. Pre-trained models from our experiments.

To see more details on both our process and general information (via our lab notebook), click here

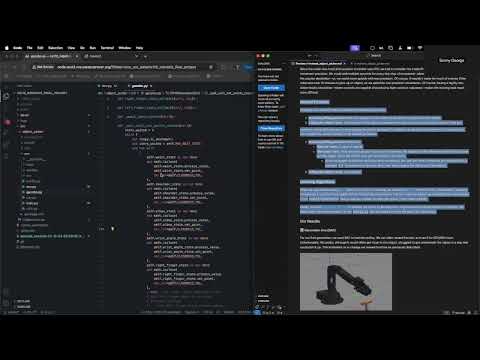

Video Walkthrough:

https://youtu.be/48MWSUeu9Rg

Code Structure

The src of our package (object-picker) is structured as follows:

📁 src
├── 📄 config.py # global constants and parameters
├── 📄 env.py    # training-env code (reward logic & training primitives)
├── 📄 gazebo.py # code handling topic and service comms with gazebo sim
├── 📄 run.py    # loads and runs policies on real px100
├── 📄 train.py  # main entrypoint for training
└── 📄 utils.py  # generic helper functions

How to Run the Code

ℹ️ Run training: To run the training script with the parameters specified in the if __name__ == '__main__': block, you must:

  1. Launch ROS with:
    roslaunch
  2. Start the Gazebo simulation with:
    roslaunch interbotix_xsarm_gazebo xsarm_gazebo.launch robot_model:=px100 use_position_controllers:=true gui:=false use_rviz:=true
    Or (depending on whether you want the Gazebo GUI or RViz to open)
    roslaunch interbotix_xsarm_gazebo xsarm_gazebo.launch robot_model:=px100 use_position_controllers:=true gui:=true
  3. Start the training script with:
    rosrun object-picker train.py
    Or, cd into the src directory and run:
    python train.py

ℹ️ Run real px100: To run the trained models on the real px100 robot arm:

  1. Run:
    rosrun object-picker run.py
    Or, cd into the src directory and run:
    python run.py

Reward Function

The reward function is stateful and is as follows:

  1. 'Assuming lifting position' term term:
    • 'Get low' term: Z-value of gripper
    • 'Get close' term: Only once the gripper is low (and not before), the negative of the distance between the gripper and the object (since the forklift must get low before it can insert).
      • Once the gripper is both low and close (and not before), the 'get low' term is removed and replaced with a constant 1.0 (to prevent the 'get low' term from discouraging the lifting up of the object).
  2. 'Lifting the object' term: The negative of the distance between the object and the goal position (raised in the air).

Nodes Created

Node Created Function
px100-training Orchestrate policy training by:
1. subscribing to the joint-state topics
2. publishing to joint-control topics

Topics Used

Topics and Their Messages Function
/px100/waist_controller/state publish waist position
/px100/waist_controller/command receive target waist position commands
/px100/shoulder_controller/state publish shoulder position
/px100/shoulder_controller/command receive target shoulder position commands
/px100/elbow_controller/state publish elbow position
/px100/elbow_controller/command receive target elbow position commands
/px100/wrist_angle_controller/state publish wrist angle position
/px100/wrist_angle_controller/command receive target wrist angle position commands
/px100/right_finger_controller/state publish right finger position
/px100/right_finger_controller/command receive target right finger position commands
/px100/left_finger_controller/state publish right finger position
/px100/left_finger_controller/command receive target right finger position commands
