IaC_terraform_basics.md

Infrastructure as Code with Terraform

HashiCorp Terraform is an Infrastructure as Code (IaC) tool that lets you define cloud resources in human-readable configuration files that you can version, reuse, and share.

Motivation

Want to create exactly the same EC2 instance in 3 environments (dev, test, prod), or in 15 different regions? You can't really do it manually using the web console... Using Terraform, it's as simple as configure the below code in a .tf file:

resource "aws_instance" "app_server" {
  ami           = "ami-0123456789abcdef0"
  instance_type = "t2.micro"

  tags = {
    Name = "some-instance"
    Terraform = "true"
  }
}

And perform the terraform apply command to provision the infrastructure in AWS.

IaC Benefits

• Automated Provisioning: Automates the creation and configuration of infrastructure, less human errors.
• Consistent Environments: Ensures uniformity across development, testing, and production environments.
• Repeatable Process: Allows for the replication of infrastructure setups, or reproduced infrastructure in a case of Disaster Recovery (RD).
• Versioned and Documented: IaC scripts are version-controlled, enabling teams to track changes over time and roll back to previous states if needed.

Install Terraform

https://learn.hashicorp.com/tutorials/terraform/install-cli?in=terraform/aws-get-started

Working with Terraform in AWS

Note

It's recommended to create a dedicated GitHub repo for this module.

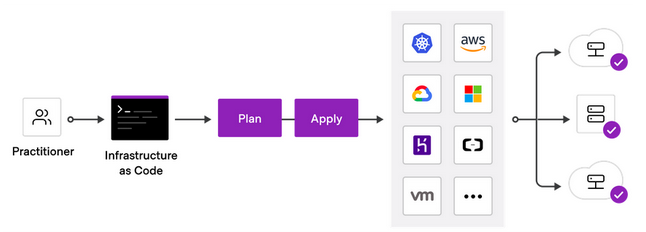

Terraform creates and manages resources on cloud platforms through their APIs.

Providers are plugins that allow Terraform to interact with different platforms. Providers enable Terraform to create, read, update, and delete infrastructure resources in the platform you work with. You can find all publicly available providers that Terraform can work with on the Terraform Registry, including AWS, Azure, GCP, Kubernetes, Helm, GitHub, Splunk, DataDog, and many more.

Deploy a single EC2 instance

The set of files used to describe infrastructure in Terraform is known as a Terraform configuration files (.tf).

Let's provision a single AWS EC2 instance:

terraform {
  required_providers {
    aws = {
      source  = "hashicorp/aws"
      version = ">=5.55"
    }
  }

  required_version = ">= 1.7.0"
}

provider "aws" {
  region  = "<aws-region>"
  profile = "default"  # change in case you want to work with another AWS account profile
}

resource "aws_instance" "netflix_app" {
  ami           = "<ec2-ami>"
  instance_type = "t2.micro"

  tags = {
    Name = "<instance-name>"
  }
}

• The terraform block contains Terraform settings, including the required providers used to provision infrastructure. In this example, the aws provider's source is defined as hashicorp/aws.
• The provider block configures the specified provider, in this case aws.
• The resource blocks to define a physical or a virtual component in your infrastructure. In this example, the block declares a resource of type aws_instance (EC2 instance) with a local name netflix_app. The resource local name is used internally by Terraform, but has no meaning in AWS.

1. In your repo, create a file called main.tf, copy the above code and change it as follows:

   1. <aws-region-code> is the region in which you want to deploy your infrastructure.
   2. <ec2-ami> is the AMI you want to provision (choose an Ubuntu AMI according to your region).
   3. <instance-name> is the name of you EC2 instance.

2. The directory containing your .tf file is known as Terraform workspace dir. When first working with your TF workspace, you have to initialize it by: terraform init.

   Initializing a configuration directory downloads and installs the providers defined in the configuration, which in this case is the aws provider.

3. Run the terraform plan to create an execution plan, which lets you preview the changes that Terraform plans to make to your infrastructure.

4. Apply the configuration now with the terraform apply command.

When you applied your configuration, Terraform wrote data into a file called terraform.tfstate. Terraform stores the IDs and properties of the resources it manages in this file, so that it can update or destroy those resources going forward. The Terraform state file is the only way Terraform can track which resources it manages, and often contains sensitive information, so you must store your state file securely, outside your version control.

Note

• You can make sure your configuration is syntactically valid and internally consistent by using the terraform validate command.
• Inspect the current state using terraform show.
• To list all resources in the state file, perform terraform state list.

Destroy infrastructure

The terraform destroy command terminates resources managed by your Terraform project.

You can destroy specific resource by terraform destroy -target RESOURCE_TYPE.NAME.

Exercises

✏️ Change the deployed infrastructure

1. Add another tag to the aws_instance.netflix_app resource. Plan and apply. Can you see the updated EC2 in the AWS web console? What does in-place update mean?
2. Change the instance type (e.g. from t2.micro to t2.nano). Plan and apply. Is terraform destroying your instance in order to perform the update?
3. Update the ami of your instance. How many resources are going to be added or destroyed? Why?

✏️ Extend the EC2

In main.tf file, configure a Security Group resource:

resource "aws_security_group" "netflix_app_sg" {
  name        = "<your-name>-netflix-app-sg"   # change <your-name> accordingly
  description = "Allow SSH and HTTP traffic"

  ingress {
    from_port   = 22
    to_port     = 22
    protocol    = "tcp"
    cidr_blocks = ["0.0.0.0/0"]
  }

  ingress {
    from_port   = 80
    to_port     = 80
    protocol    = "tcp"
    cidr_blocks = ["0.0.0.0/0"]
  }

  egress {
    from_port   = 0
    to_port     = 0
    protocol    = "-1"
    cidr_blocks = ["0.0.0.0/0"]
  }
}

Attach the SG by adding the following argument to the aws_instance.netflix_app instance by:

resource "aws_instance" "netflix_app" {
  ...
+ security_groups = [aws_security_group.<your-sg-name>.name]
  ...
}

Similarly:

• Use the aws_key_pair resource to provision a Key-pair and use it in your instance.
• Use the aws_ebs_volume resource to create an 5GB EBS volume and attach it to your instance.

Terraform infers dependencies between resources based on the given configurations, so that resources are created (and destroyed) in the correct order. For example, the SG will be created first, then the EC2 instance itself.

Sometimes, there are hidden resource dependencies. For example, your EC2 instance should read data from some S3 bucket. Without the bucket being provisioned first, the EC2 instance would not be functioning well.

• Use the aws_s3_bucket resource to create an S3 bucket. Then use the depends_on argument to handle hidden resource dependencies that Terraform cannot automatically infer.

✏️ Deploy the Netflix app within your EC2 instance

Use the user_data argument to configure a bash script to be executed when the instance is launching.

resource "aws_instance" "netflix_app" {
  ...
+ user_data = file("./deploy.sh")
  ...
}

Create a bash script named deploy.sh. The bash script should install Docker on the machine, and run the Netflix stack in the background.

Make sure you are able to visit the app after applying your configurations.

Note: Updates to the user_data argument for an existing instance will trigger a stop/start of the instance by default.

✏️ Manage the terraform.tfstate file

As said, the state file keeps track of resources created by your configuration and maps them to real-world resources. When you run terraform apply, Terraform writes metadata about your configuration to the state file and updates your infrastructure resources accordingly.

Occasionally, you may need to manipulate your projects state outside of the standard workflow. This exercise addresses some common scenarios.

Scenario I: AWS resource present in terraform.tfstate file but not in the .tf configurations files.

1. In main.tf create an IAM role that can be attached to EC2 instances:

   resource "aws_iam_role" "netflix_app_role" {
     name               = "<your-role-name>"
     assume_role_policy = <<EOF
   {
     "Version": "2012-10-17",
     "Statement": [
       {
         "Effect": "Allow",
         "Principal": {
           "Service": "ec2.amazonaws.com"
         },
         "Action": "sts:AssumeRole"
       }
     ]
   }
   EOF
   }

2. Plan and apply.

3. Use terraform state list to make sure your IAM role exists and managed by Terraform.

4. Now comment-out the aws_iam_role.netflix_app_role configuration in main.tf (Comments in Terraform are denoted using #).

5. Perform a plan.

What Terraform is planning to do in the case where a resource exists in the state file but doesn't exist in the .tf configuration files?

6. Now use terraform state rm aws_iam_role.netflix_app_role to remove the resource from the terraform.tfstate file only. This step effectively make Terraform forget the IAM role object while it continues to exist in AWS.

Scenario II: Importing an existing resource into Terraform project

The import block can import an existing resources in AWS, which is not managed by Terraform, into your Terraform project. Once imported, Terraform tracks the resource in your state file.

Let's import one of your existing EC2 instances into Terraform.

1. In main.tf, add the following blocks:

   import {
    to = aws_instance.my_ec2
    id = "<instance-id>"
   }

   resource "aws_instance" "my_ec2" {
     name = "my_ec2"
     # (other resource arguments...)
   }

2. Carefully plan and apply to import the resource into the state file.

The import block is idempotent. After importing, you can remove import blocks from your configuration files.

4. You should now configure the aws_instance.my_ec2 resource to reflect the true configurations in AWS (the key pair name, VPC ID, attached security group name, etc...). To do so, you can either write it manually (the good and safe practice), or utilize the configuration generator tool of Terraform (Use carefully, it's an experimental tool).
5. If you fully specify the configuration file according to the true state of the resource in AWS, you should see no plan when performing terraform plan, because the resource configuration reflects the actual state of the resource in AWS.

Scenario III: Remove a resource from Terraform

Use a removed block to remove specific resources from your state. This does not destroy the resource itself in AWS, instead it indicates that your Terraform configuration will no longer manage the resource.

1. Comment out the entire resource aws_instance.my_ec2 block from main.tf.
2. Add a removed block to instruct Terraform to remove the resource from state, but not destroy it:

   removed {
    from = aws_instance.my_ec2
    lifecycle {
      destroy = false
    }
   }

3. Carefully plan and apply.
4. Confirm that Terraform forgot the resource by terraform state list, and that the instance still exists in AWS.

Scenario IV: Resource drift

You should not make manual changes to resources controlled by Terraform, because the state file will be out of sync, or "drift," from the real infrastructure. By default, Terraform compares your state file to real infrastructure whenever you invoke terraform plan or terraform apply.

If you suspect that your infrastructure configuration has changed outside of the Terraform workflow, you can use a -refresh-only flag to inspect what the changes to your state file would be.

1. Run terraform plan -refresh-only to determine the drift between your current state file and actual configuration.
   You should be synced: No changes. Your infrastructure still matches the configuration.
2. In the AWS Console, manually add a new tag to one of your EC2 instances manages by Terraform.
3. Run terraform plan -refresh-only again. As shown in the output, Terraform has detected differences between the infrastructure and the current state.
4. Apply these changes by terraform apply -refresh-only to make your state file match your real infrastructure (your .tf configuration file would not be updated accordingly, they remain un-synced).

A refresh-only operation does not attempt to modify your infrastructure to match your Terraform configuration -- it only gives you the option to review and track the drift in your state file. If you ran terraform plan or terraform apply without the -refresh-only flag now, Terraform would attempt to revert your manual changes.

5. Now, you should manually update your configuration accordingly.
